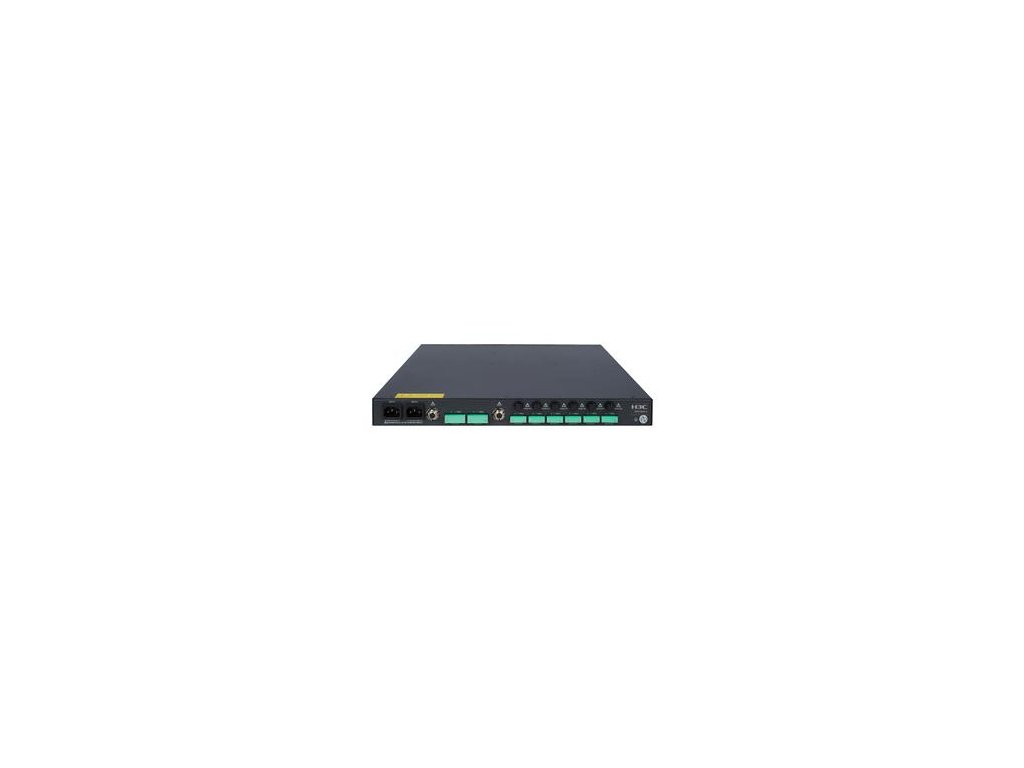

HPE RPS1600 Redundant Power System

Podrobný popis

HP RPS1600 Redundant Power System (JG136A) A-RPS1600 is a cost effective power redundancy solution which can support up to 8 active devices and up to 3200W power per system, 1400W power per port to fixed port switches Ports: 8 redundant power supply ports Restrictions: two -56V/25A DC(PoE); six -56V/8A DC(non-PoE) Physical characteristics: Dimensions: 15.63(d) x 17.32(w) x 1.74(h) in. (39.7 x 44 x 4.42 cm) Weight: 14.11 lb. (6.4 kg) Full configuration weight: 16.75 lb. (7.6 kg) Electrical characteristics: Voltage: 100-120/200-240 VAC Current: 30/60 A Idle power: 38 W Maximum power rating: 3550 W RPS power: 3200 W PoE power: 2800 W RPS: -55 V PoE: -55 V Frequency: 50/60 Hz Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. With one RPS1600 Power Supply, the PRS1600 Redundant Power System can provide 1600W power output; With two PRS1600 Power Supplies, the output power is 3200W. Safety • CE Labeled • UL 60950-1 • IEC 60950-1 • ICES-003 • FCC Part 15, Subpart B • EU RoHS Compliant • EN 60950-1/A11 • C-Tick • VCCI Class A • ROHS Compliance • EN 300386 Compatible products • HP 5120 EI Switch Series • HP 5500 SI Switch Series • HP 5500 EI Switch Series • HP 3610 Switch Series • HP 3600 EI Switch Series • HP 3600 SI Switch Series • HP 3100 EI Switch Series • HP 5120 SI Switch Series • HP 5800 Switch Series • HP 5820 Switch Series
