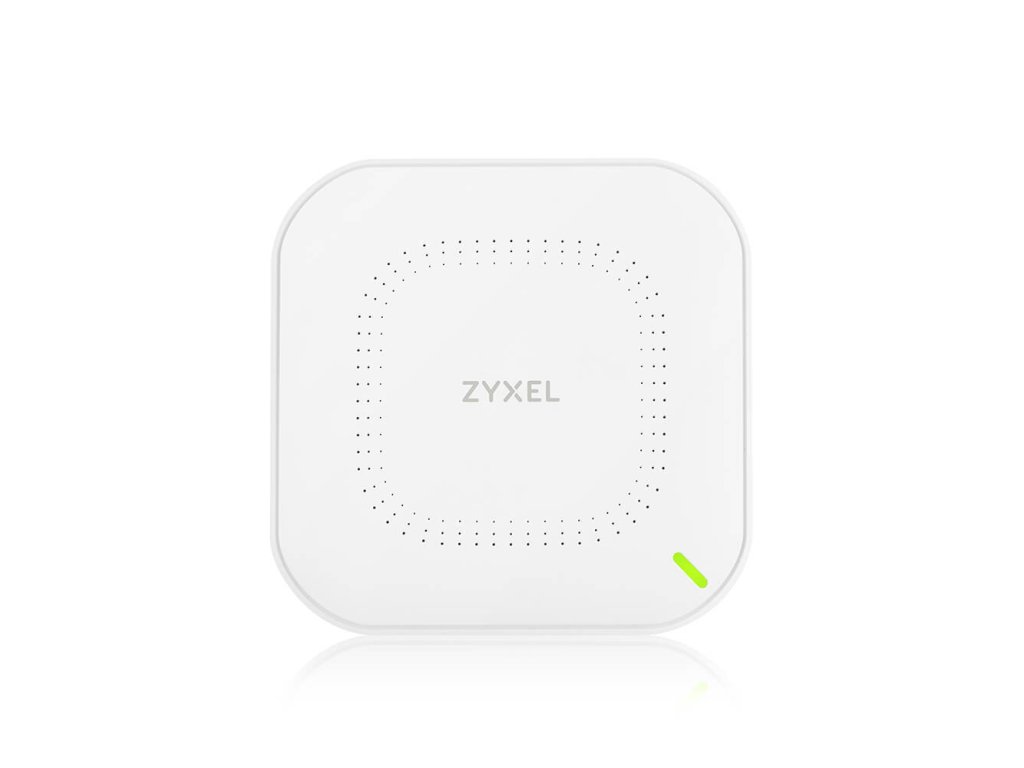

ZYXEL NWA50AX,Standalone/NebulaFlex WIFI AP, singl pack

Podrobný popis

Description 802.11ax (WiFi 6) Dual-Radio PoE Access Point Wireless Standard IEEE 802.11 ax/ac/n/g/b/a MIMO MU-MIMO Wireless speed 2.4GHz: 575 Mbps 5GHz: 1200 Mbps Frequency band 2.4 GHz • USA (FCC): 2.412 to 2.462 GHz • Europe (ETSI): 2.412 to 2.472 GHz 5 GHz • USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz • European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz Bandwidth 20-, 40-, 80-MHz Conducted typical transmit output power US (2.4GHz/5GHz): 23/26 dBm EU (2.4GHz/5GHz): 20/25 dBm RF Design Antenna type 2x2 + 2x2 MIMO embedded antenna Antenna gain 2.4GHz: 3 dBi 5GHz: 4 dBi Minimum Receive sensitivity Min. Rx sensitivity up to -99 dBm WLAN feature Band Steering Yes WDS/Mesh Yes Fast roaming Yes DCS Yes Load balancing No Security Encryption • WPA Personal • WPA2 Personal • WPA3 Personal Authentication No Access management • MAC filtering • Rogue AP detection Networking IPv6 Yes VLANs Yes WMM Yes U-APSD Yes Management Operating mode • Nebula Cloud managed • Standalone ZON Utility • Discovery of Zyxel switches, APs and gateways • Centralized and batch configurations o IP configuration o IP renew o Device factory reset o Device reboot o Device locating o Web GUI access o Firmware upgrade o Password configuration Zyxel Wireless Optimizer WiFi AP planning Web UI/CLI Yes SNMP NO Physical Specifications Item Dimensions (WxDxH)(mm/in.) 140 x 140 x 37.5/5.51 x 5.51 x 1.48 Weight (g/lb.) 290/0.64 Packing Dimensions (WxDxH)(mm/in.) 240 x 155 x 60/9.45 x 6.10 x 2.36 Weight (g/lb.) 600/1.32 Included accessories • Power adapter • Mount plate • Mounting screws MTBF (hr) 1,010,980 Physical Interfaces Ethernet port 1 x 10/100/1000M LAN Power • Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1.5A • PoE (802.3at): power draw 16 W Environmental Specifications Operating Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 90% (non-condensing) Storage Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) Certifications Radio • FCC Part 15C • FCC Part 15E • ETSI EN 300 328 • EN 301 893; LP0002 • EN 60601-1-2 EMC • FCC Part 15B • EN 301 489-1 • EN 301 489-17 • EN55022 • EN55024 • EN61000-3-2/-3 • BSMI CNS13438 Safety • EN 60950-1 • IEC 60950-1 • BSMI • CNS14336-1
